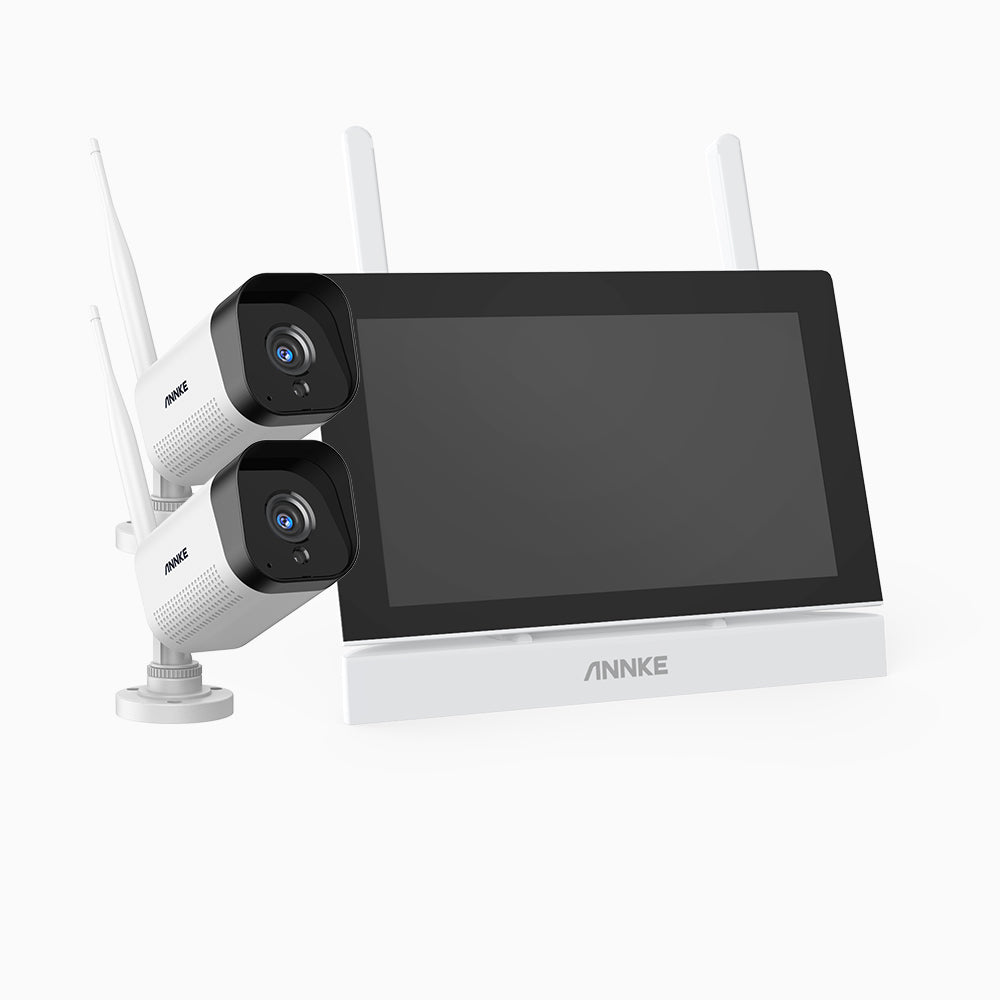

WTL300
All-in-One Security Camera
System for 24/7 Protection
All-in-One 7.1’’ LCD Monitor
The LCD monitor is not just a monitor, but an NVR for 24/7 non-stop recording. You can easily view local live stream after the initial setup without extra mobile devices.
3MP Full HD Detail & Clarity
With the use of advanced 1/3'' CMOS sensors, the camera can capture 3MP Full HD (2304 X 1296) videos, delivering a live view and recording experience that leaves no details to the imagination. Additionally, the cameras are equipped with a 3.6 mm wide-angle lens, which offers a 70° field of view, allowing you to conveniently monitor all angles.
Human Detection & Email Alerts
Advanced human detection technology guarantees accurately identify human presence. Upon detection, the wireless security system will trigger an automatic full-screen display and alarm sound to ensure utmost security. Stay connected on-the-go with mobile alerts via app and instant email notifications.
Two-Way Audio
By incorporating a speaker and microphone, this feature allows you to communicate effortlessly with individuals on the opposite side, be it your pets, family members, or guests. Two-way audio facilitates live conversations, ensuring that you remain connected to your loved ones even when you're not physically present.
Advanced H.264+ Video Format
With H.264+ video compression technology, videos files are compressed without losing 3MP quality. H.264+ compresses data files up to 40% more than H.264 encoding technology, and saves your plenty of storage space and bandwidth.
Quick Access by Voice Command
Designed to work with Alexa, it allows you to use voice commands to view live video footage, play recorded videos, or power the device on/off. This simplifies the process of monitoring your home security from any location within your house.
IP66 Weatherproof - Indoor & Outdoor Using
Designed to withstand even the harshest elements, the wireless camera system is built to last. With a wide operating temperature range of 14 °F to 131 °F (-10 °C to 55 °C), it can endure extreme hot or cold weather conditions without compromising performance. Whether it's rain, snow, or intense heat, you can trust these cameras to keep a watchful eye on your property and deliver reliable surveillance, day or night.
Plastic
Rugged Housing
131 °F | 55 °C
Hot Rating
14 °F | -10 °C
Cold Rating
IP66
Water Rating
Small on Prices, Big on Features
Transmission
More Stable
Support wireless automatic cascading and wireless relay, improve the wireless transmission distance of IPC and NVR.
Storage More
Flexible
Support local storage and cloud storage, up to 256 GB memory card. You can freely choose to store videos.
Setting More
Personalized
Support for custom monitoring areas and privacy masks, so you have the flexibility to define specific areas that require monitoring.
| Model Number | N44WEE+I41FL×4+1TB | |
| NVR | ||
| Video & Audio | LCD screen | 10.1 inch |
| Video Compression | H.264+ | |
| IP Video Input | 4CH Wireless | |
| Audio Output | Support | |
| Max Recording Resolution | Up to 5M(2560x1920) | |
| Max Playback Resolution | Up to 5M(2560x1920) | |
| Max Playback Channel | 4CH | |
| Max Playback Capacity | 4CH 2MP/2CH 5MP | |
| Hard Drive | HDD | 1TB Segate surveillance HDD |
| HDD Capacity | Up to 4TB capacity(3.5 inches) | |
|
External Interface |
Network interface | RJ45x1(10/100M) |
| Wireless antenna | Built-in（IEEE802.11b/g/n) | |
| USB | USB 2.0x1 | |
| General | Housing | Plastic |
| Operating Power | DC12V | |
| Power Consumption | 20W (With HDD) | |
| Working Temperature | 14 °F ~ 131 °F /-10 °C ~ 55 °C | |
| Dimensions(W x H x D) | 10.2” x 9.3” x 6.9” / 260x235x175mm(Including the bracket) | |
| Weight | 2.93lbs / 1330g (With HDD) | |
| IP Camera | ||
| Camera | Video Resolution | 2MP(1920x1080) |
| Image sensor | 1/2.8" Progressive Scan CMOS | |
| Video compression | H.264+ | |
| Audio Compression | G.711A | |
| Lens | 3.6mm | |
| Angle of View | 70° | |
| Number of Infra-Red LEDs | 18 | |
| Night Vision Distance | Up to 100ft/30m | |
| IR Cut Filter | YES | |
| Ethernet | RJ45x1(10M/100M) | |
| Wireless antenna | 1 Ports(IEEE802.11b/g/n) | |
| General | Housing | Metal for mainpart |
| Operating Power | DC12V | |
| Operating Temperature | -4 °F – 140 °F /-20 °C – 60 °C | |
| Indoor/Outdoor | Indoor/Outdoor | |
| Weatherproof Rating | IP66 | |
| Dimension (L x W x H) | ||
| Weight | ||
| Packaging Contents | ||
| NVR | 1 | |
| Camera | 4 | |
| Ethernet Cable | 3.3ft/1m x1 | |
| USB Mouse | 1 | |
| Power Adapter | 5 | |
| Antenna | 4 | |
| Antenna Extension Line | 1 | |
| Mounting Screws Bag | 5 | |
| User's Manual For NVR | 1 | |
| Package Dimension (L x W x H) | ||
| Package Weight | ||
