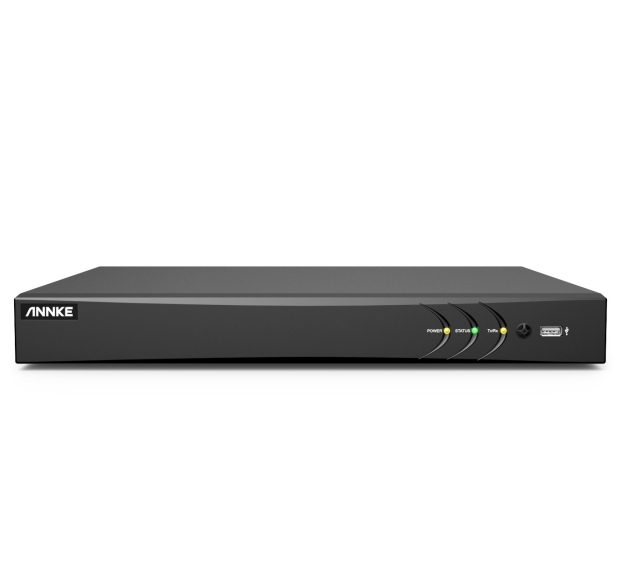

5MP 32 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Slots, Up to 10 TB Capacity for Each Disk

SKU: AE-DX31NB000-V1
€359,99
€359,99
Subtotal: €359,99
5MP 32 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Slots, Up to 10 TB Capacity for Each Disk

5MP 32 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Slots, Up to 10 TB Capacity for Each Disk

€359,99

5MP 32 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Human & Vehicle Detection, H.265+, Dual Hard Drive Slots, Up to 10 TB Capacity for Each Disk

€359,99

The Most Cutting-Edge H.265+ Video Compression

This cutting-edge technology not only greatly reduces bandwidth requirements, but also substantially improves storage and transmission efficiency. In a normal environment, the H.265+ coding standard enables you to record up to 7 times longer than H.264 with the same HDD.

Powerful 5-in-1 DVR with Strong Compatibility
This high-end DVR supports AHD, CVBS, TVI, CVI as well as IP cameras, adding flexibility to your device connection and bringing you ease of mind. Because of its wide-range compatibility, you can take full advantage of your old cameras and add brand new cameras to them.

Smart Motion-Triggered Alerts
You can mark out the relevant areas for motion detection to free yourself from false alerts. Whenever motion detection is triggered, you will receive instant email alerts with snapshots and APP alarm pushes so that appropriate precautions could be taken.

Easy Remote Access from Mobile Devices
Consolidating your security system into your smartphone, tablet and PC can be quite simple with our free ANNKE VISION APP. Quick scan the QR-code, install it on your mobile devices and then you can watch live video anytime from anywhere.

Save Time with Smart Search/Playback Function
The smart search allows you to mark out the specific areas containing motions. The smart playback can fast-forward or skip the still images and offer you the video with movements in your selected areas and period. while with the normal playback, you need to manually check the video with movements frame by frame.

More Cameras, Wider Coverage

Accepting 32 pcs 1080p analog cameras and 2 pcs 4MP IP cameras, it easily monitors every corner of your home or shop. It also supports up to 16 analog cameras and 18 IP cameras simultaneously by switching the analog channels into IP channels.

Download DX31NB Specification

What's in the Box (CS1EQ)
  • 1X DVR
  • 1X USB Mouse
  • 1X Power Adapter
  • 1X HDMI Cable
  • 1X Network Cable
  • 1X User's Manual For DVR
  • CS1EQ Camera
    Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Analog HD Playback Resolution3K Lite@20fps; 5 MP lite@12 fps; 4MP Lite/1080P/@15fps;720P/WD1@25/30fps
    Video Input32CH Analog HD/Analog + 2CH (up to 34-ch) IP (Enhanced IP mode on:
    8-ch (up to 40-ch), each up to 4 Mbps)
    Audio Input/OutputInput: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/32-ch via coaxial cable
    Output:1-ch, RCA (Linear, 1 KΩ)
    Supported Camera TypesSupport HD TVI Input: 3K/5MP/4 MP/1080p/720p
    Support AHD Input: 4 MP/1080p/720p
    Support CVI Input: 4 MP/1080p/720p
    Support CVBS Input:PAL/NTSC
    Support IP Camera Input:6MP/5MP/4MP/3MP/2MP/720P
    Video OutputVGA: 1-ch, up to 1080p/60 Hz
    HDMI: 1-ch, up to 4K (3840 × 2160)/30 Hz
    CVBS:1-ch, BNC (1.0 Vp-p, 75 Ω)
    IPC Playback ResolutionUp to 6 MP resolution Max Playback Channel16CH
    Motion Detection 2.0Deep learning-based motion detection 2.0 for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
    Quick search by human, vehicle and event type is supported;
    Smart event4CH Line crossing & Intrusion Detection
    HDD CapacityUp to 10 TB Capacity for each disk Network InterfaceRJ45 X1(10/100 M/1000 M self-adaptive Ethernet interface)
    ONVIFSupport HDD2 SATA Interface
    RS485Support USBUSB 2.0 X1 + USB 3.0 X 1
    Working Temperature14 °F – 131 °F/-10 °C – 55 °C Dimensions (W X H X D)385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
    Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)
    Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    Analog HD Playback Resolution3K Lite@20fps; 5 MP lite@12 fps; 4MP Lite/1080P/@15fps;720P/WD1@25/30fps
    Video Input32CH Analog HD/Analog + 2CH (up to 34-ch) IP (Enhanced IP mode on:
    8-ch (up to 40-ch), each up to 4 Mbps)
    Audio Input/OutputInput: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/32-ch via coaxial cable
    Output:1-ch, RCA (Linear, 1 KΩ)
    Supported Camera TypesSupport HD TVI Input: 3K/5MP/4 MP/1080p/720p
    Support AHD Input: 4 MP/1080p/720p
    Support CVI Input: 4 MP/1080p/720p
    Support CVBS Input:PAL/NTSC
    Support IP Camera Input:6MP/5MP/4MP/3MP/2MP/720P
    Video OutputVGA: 1-ch, up to 1080p/60 Hz
    HDMI: 1-ch, up to 4K (3840 × 2160)/30 Hz
    CVBS:1-ch, BNC (1.0 Vp-p, 75 Ω)
    IPC Playback ResolutionUp to 6 MP resolution
    Max Playback Channel16CH
    Motion Detection 2.0Deep learning-based motion detection 2.0 for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
    Quick search by human, vehicle and event type is supported;
    Smart event4CH Line crossing & Intrusion Detection
    HDD CapacityUp to 10 TB Capacity for each disk
    Network InterfaceRJ45 X1(10/100 M/1000 M self-adaptive Ethernet interface)
    ONVIFSupport
    HDD2 SATA Interface
    RS485Support
    USBUSB 2.0 X1 + USB 3.0 X 1
    Working Temperature14 °F – 131 °F/-10 °C – 55 °C
    Dimensions (W X H X D)385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
    Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)
