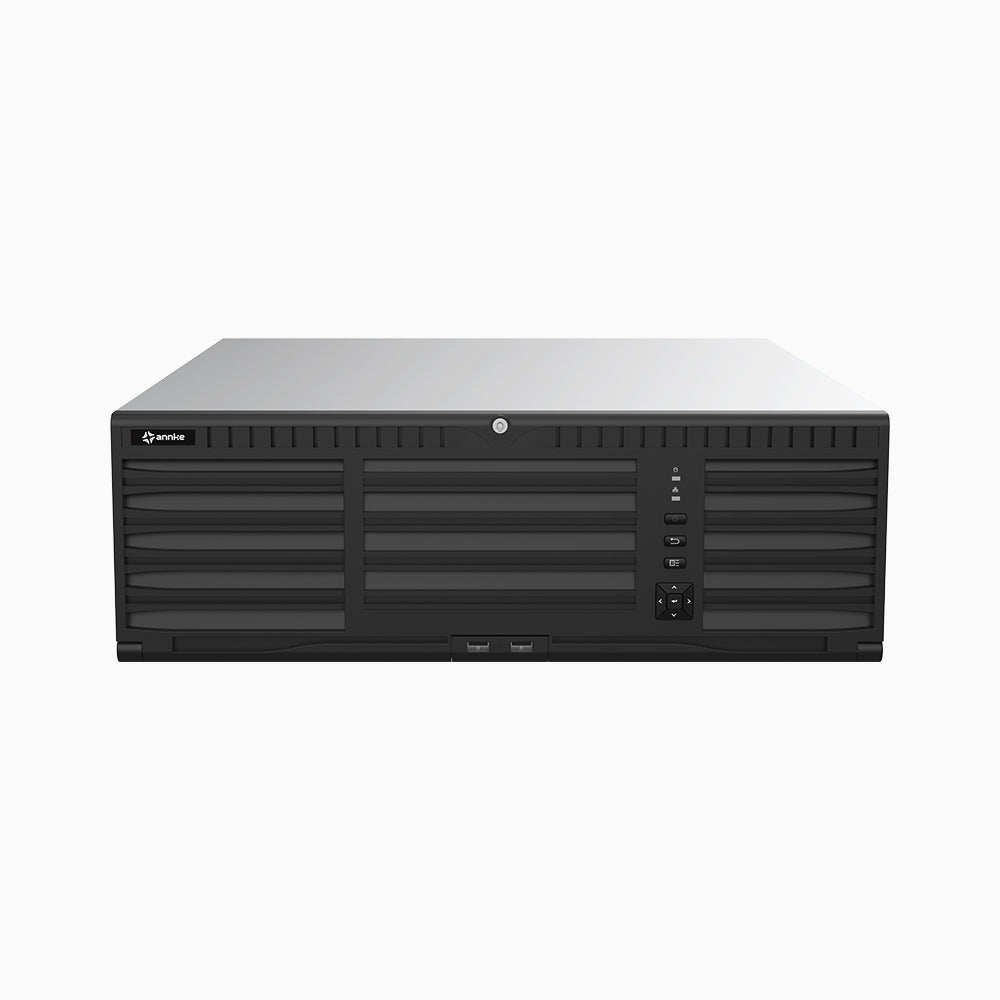

Up to 256 channel IP cameras can be connected.
Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected.
2 HDMI (different source) and 1 VGA interfaces.
16 HDD can be used for continuous video recording.
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera.
Advanced streaming technology enables smooth live view in poor network conditions.
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks.
Note: ANNKE NCD800 cameras can't be connected.
Specification
| Video And Audio | IP Video Input | 256-ch |
| Incoming Bandwidth (RAID Mode) | 768 Mbps | |
| Outgoing Bandwidth | 768 Mbps | |
| Incoming Bandwidth | 768 Mbps | |
| Outgoing Bandwidth (RAID Mode) | 768 Mbps | |
| TLS Outgoing Bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) | |
| HDMI Output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| VGA Output | 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |
| LCD Output | Optional: One 7 inch LCD | |
| Audio Output | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | |
| Two-Way Audio | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | |
| Decoding | Decoding Format | H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled. |
|
| Synchronous Playback | Up to 16 channels | |
| Decoding Capability | 1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
|
| Network | Network Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS |
| Camera Access Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO | |
| Network Interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 |
| Auxiliary Interface | SATA | 16 SATA interfaces supporting hot-plug |
| ESATA | 1 × eSATA interface | |
| Mini SAS | 2 × mini SAS interface (optional) | |
| Capacity | Up to 10 TB for each HDD | |
| Serial Interface | RS-232; RS-485; Keyboard | |
| USB Interface | Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 | |
| Alarm In/Out | 16/8 | |
| Extension Board | One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. | |
| General | Power Supply | 100 to 240 VAC, 50 to 60Hz, 5 A |
| Consumption | ≤ 140W | |
| Working Temperature | 0 °C to + 50 °C (32 °F to 122 °F) | |
| Working Humidity | 10% to 90% | |
| Dimension (W × D × H) | 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch) | |
| Weight | ≤ 16 kg (35.3 lb) |
